AC Withstand Test Equipment Selection: Standard Set vs Series Resonance

Power-Frequency AC Withstand Voltage Testing: What It Is, When You Need It, and How to Choose the Right Equipment

Among all the tests run on high-voltage equipment before it's put into service, the AC withstand voltage test is the one that gives the most direct answer to the only question that ultimately matters: can this equipment actually hold voltage without breaking down? Insulation resistance and dielectric loss measurements are diagnostic — they tell you about the condition of the insulation. The withstand test is a pass/fail confirmation under real electrical stress.

What Power-Frequency AC Withstand Testing Actually Does

A power-frequency (50/60Hz) AC withstand test applies a voltage above the equipment's rated operating voltage — typically two to several times rated voltage, depending on the standard and equipment class — and holds it for a specified duration, usually one minute. If the insulation survives without breakdown, flashover, or partial discharge failure, the equipment passes.

This matters because power-frequency testing stresses the insulation at the same frequency the equipment will actually experience in service, which is why it remains the reference method that most equipment standards are written around — for transformers, switchgear, cables, and other medium- and high-voltage apparatus.

Where It Fits in a Full Test Program

A withstand test on its own only tells you that the equipment survived one specific stress event. It doesn't tell you how close to the margin it was, or which part of the insulation is weakest. That's why withstand testing is normally run as one part of a broader sequence — alongside insulation resistance, DC resistance, turns ratio, and, where applicable, dielectric loss (tan delta) testing. Insulation resistance and tan delta data point to where a weakness might be developing; the withstand test confirms whether the equipment can still handle real electrical stress today.

This is also why withstand testing is typically run last in a commissioning sequence, after the other diagnostic tests are complete — running it on a piece of equipment already flagged as questionable by insulation or tan delta results risks causing damage that could have been avoided.

Standard vs. Resonance Test Sets, and When You Need Which

For most medium-voltage equipment — dry-type transformers, switchgear, distribution cable — a standard power-frequency AC withstand voltage test transformer is the right tool: compact, field-portable, and capable of the voltage levels most commissioning and maintenance programs call for.

Larger equipment changes the equation. High-capacity power transformers, SVG/SVC transformers, or long cable runs present enough capacitive or inductive load that a standard test transformer either can't reach the required voltage or would need to be impractically large to do so. In these cases, a variable-frequency series resonance test system is the more practical choice — it uses the load's own reactance as part of a resonant circuit, letting a comparatively compact set of reactors and an excitation transformer reach voltages that a standard test set of similar size couldn't produce.

Choosing between the two comes down to the load: equipment capacitance/inductance, required test voltage, and how portable the setup needs to be for the site.

What This Looks Like in the Field

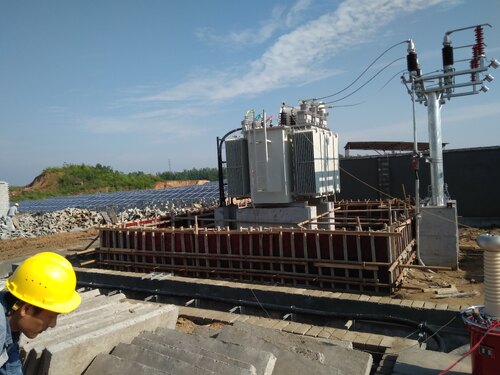

On a recent site visit for a photovoltaic plant commissioning project, our team used a standard power-frequency AC withstand test transformer for a grounding transformer's withstand test, then switched to a variable-frequency series resonance system for the plant's larger SVG transformer and its medium-voltage cables — the same equipment class, tested with different tools because the load characteristics called for it. That kind of judgment call is exactly what the right equipment selection is about: matching the test set to the load, not just the voltage class.
