500kV Transmission Line Phase Checking Case: Wireless High Voltage Phase Detector Improves Testing Safety and Efficiency

With continuous development of power grids, new transmission lines, substations, and electrical infrastructure projects require reliable testing before operation.

Before connecting high voltage circuits or completing grid commissioning, engineers must verify the phase relationship between lines.

Incorrect phase connection may cause current impact, equipment damage, or unstable power system operation.

Therefore, accurate phase checking is an essential step before energizing and connecting high voltage systems.

The project required high voltage line phase verification in a field environment.

Main testing requirements included:

• Confirming line energized status
• Measuring phase difference
• Checking phase relationship
• Identifying same-phase or different-phase conditions

Traditional wired phase detectors may require complex cable connections, which can reduce field operation efficiency.

The project required a solution with:

• High voltage capability
• Wireless operation
• Reliable measurement
• Easy field application

The TAG-8600C Wireless High Voltage Phase Detector was selected for the phase checking application.

The system consists of:

• X transmitter
• Y transmitter
• Wireless receiving host

During testing, both transmitters measure voltage status, frequency, and phase information from different high voltage lines.

The data is transmitted wirelessly to the receiving host, which calculates the phase difference and determines the testing result.

Before testing:

• Check battery condition
• Inspect insulated rods
• Confirm safety requirements

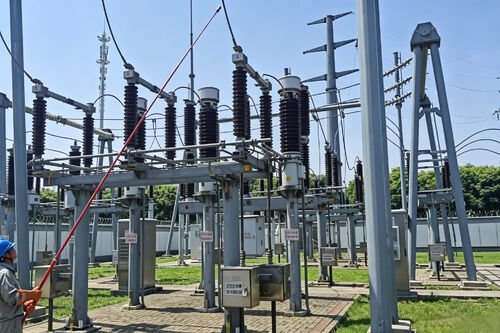

The X and Y transmitters are installed on insulated operating rods and connected to the corresponding high voltage lines.

The transmitters collect:

• Voltage status
• Phase information
• Frequency data

and transmit measurement results wirelessly.

The receiving host displays:

• Phase difference
• Frequency
• Vector diagram
• Same-phase / different-phase result

Voice guidance helps operators confirm the result quickly.

By using TAG-8600C wireless high voltage phase detector:

Wireless communication reduces complicated wiring operations in high voltage environments.

Engineers can complete phase verification faster during field operation.

The equipment supports AC voltage measurement from 5V to 500kV, suitable for various power system applications.

TAG-8600C provides:

• 5V–500kV measurement range
• Approx. 100m wireless transmission distance
• Phase accuracy ≤5°
• Frequency accuracy ±0.1Hz
• Color screen display with vector diagram
• Voice result notification
• Leakage current ＜10μA during high voltage measurement

Applications include:

• Transmission lines
• Substations
• Ring network systems
• Power maintenance projects

High voltage phase checking plays an important role in power system commissioning and maintenance.

The TAG-8600C Wireless High Voltage Phase Detector provides a safer and more efficient solution for transmission line phase identification, helping engineers improve testing reliability and support safe power system operation.
