50kV Test Transformer Insulating Clothing Test Device Compliant with IEC903:1988 and Integrated Platform Layout

The HZG2101 Insulating Clothing Test Device is developed in accordance with the Preventive Test Regulations for Electric Safety Tools. It fully meets national and IEC standards, designed for power frequency withstand voltage tests on insulating clothing, insulating capes and insulating trousers.

With global power grid construction and power safety management tightening, regular preventive tests for electrical personal protective equipment (PPE) become mandatory for power bureaus, power construction companies and safety inspection labs. This test bench provides standardized, repeatable hipot testing for insulating safety gear and enjoys wide demand in the power safety testing industry.

Key Technical Parameters

Core Advantages

• Standard test bench dedicated for insulating PPE: insulating clothes, capes and trousers
• Complete electrode set included for different types of insulating safety garments
• Compliant with IEC903:1988 and domestic power safety tool test regulations

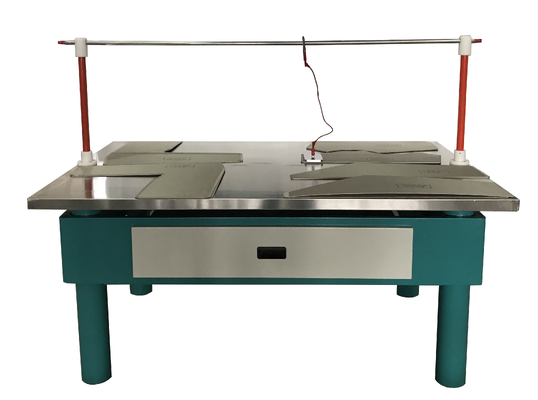

• Integrated platform layout, convenient sample placement and wiring
• Stable power frequency high voltage output for routine preventive withstand tests

Application Scope

• Power frequency withstand voltage test for insulating clothing
• Power frequency withstand voltage test for insulating capes
• Power frequency withstand voltage test for insulating trousers
• Periodic preventive inspection of electric safety protective equipment in power industry

Relevant Test Standard IEC903:1988

Packing List

FAQ

Q1: What is HZG2101 insulating clothing test device used for? A1: It performs power frequency AC withstand voltage tests for insulating clothes, insulating capes and insulating trousers. It is used for mandatory periodic preventive testing of electrical safety PPE, complying with IEC903 and power industry safety tool test specifications.

Q2: Which standard does this insulating garment test bench follow? A2: It follows IEC903:1988 and China’s Preventive Test Regulations for Electric Safety Tools. It supports multiple voltage classes from class 00 up to class 3.

Q3: What samples can be tested on this equipment? A3: Insulating clothing, insulating capes and insulating trousers for live working. The full set of matched electrode plates are supplied together with the unit.

Q4: What preparation work is needed before testing insulating clothes? A4: Check the garment for cracks, damage or dirt. Clean and dry the surface. Spray water on electrode plates (no dripping). Fit inner electrodes inside the garment and outer electrodes on the outside, connect outer electrode strips to grounded test platform.

Q5: What is the maximum test voltage of HZG2101? A5: Equipped with a 50kV test transformer, it fully covers the 30kV max test requirement for Class 3 insulating safety garments.

Q6: Is the test platform grounded? A6: Yes. The metal test platform must be reliably grounded. The outer electrode strips connect to the grounded platform during testing.

Q7: Can the machine run continuously for long time? A7: Yes, it supports continuous operation within the rated environmental condition (0~40℃, ≤90%RH, no condensation).
