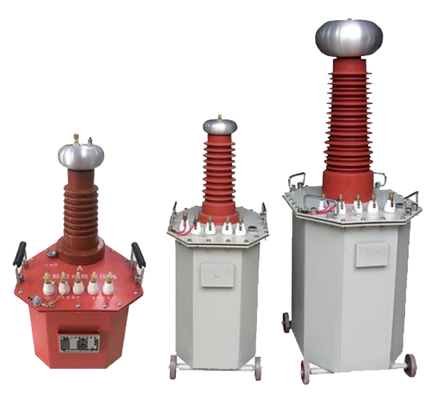

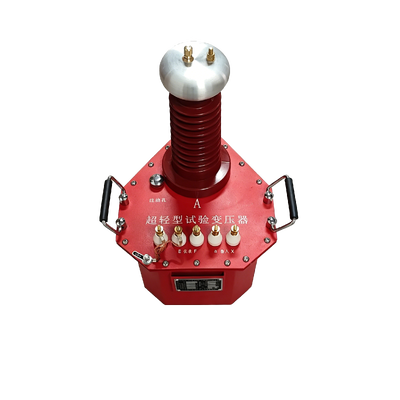

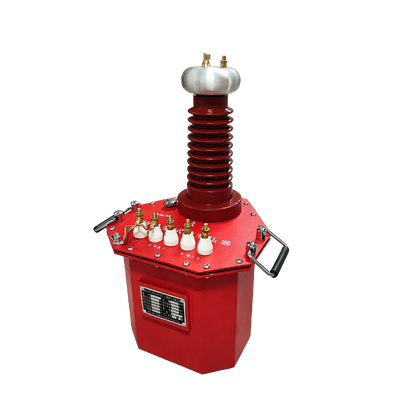

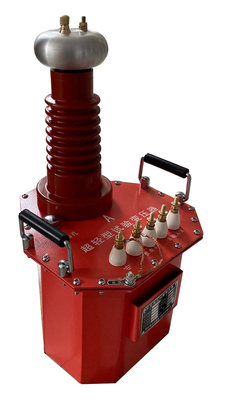

Product Introduction
The HZG1602 Series Ultra-Light AC/DC Test Transformer is designed for AC withstand, DC withstand and leakage current testing of electrical equipment, insulation materials and power system components.
Compared with conventional oil-immersed test transformers, its lightweight dry-type structure provides lower weight, smaller size and easier field transportation. The system can be configured with a control unit, high-voltage rectifier and measurement components for different AC/DC high-voltage testing requirements.
Available configurations cover 1.5–30kVA capacity, 50–120kV AC output and up to 140kV DC output, with customized voltage, capacity and current options.
Technical Parameters
| Parameter |
Specification |
| Product Type |
Ultra-Light AC/DC Test Transformer |
| Capacity |
1.5–30kVA |
| AC Output Voltage |
50–120kV |
| DC Output Voltage |
Up to 140kV |
| AC Output Current |
30–600mA |
| Input Voltage |
200V / 400V |
| Output Waveform |
Power-Frequency Sine Wave |
| AC/DC Function |
AC Withstand, DC Withstand & Leakage Current Testing |
| Surface Temperature Rise |
<55°C |
| Operation Mode |
Intermittent |
Representative configurations: 1.5/50, 3/50, 5/50, 10/50, 15/50, 20/50, 25/50, 30/50, 5/100, 10/100, 15/100, 20/100, 25/100, 15/120, 20/120, 25/120.
Output voltage, capacity, current and system configuration can be customized according to test requirements.
Applications
| Test Object |
Typical Applications |
| Power Transformers |
AC/DC withstand and insulation testing |
| Power Cables |
AC/DC withstand and leakage current testing |
| Switchgear |
High-voltage withstand testing |
| Insulators & Bushings |
Insulation withstand testing |
| Motors & Generators |
Insulation and withstand testing |
| Electrical Components |
High-voltage safety and insulation testing |
| Insulation Materials |
AC/DC dielectric testing |
| Other HV Equipment |
Factory, laboratory and field testing |
Key Features
- Ultra-Light Design: Lower weight and smaller size than conventional oil-immersed test transformers.
- AC/DC Dual Function: Configurable for AC withstand, DC withstand and leakage current testing.
- Flexible Output: Multiple capacity and voltage configurations from 1.5–30kVA and 50–120kV AC.
- Stable Output: Provides power-frequency sinusoidal high-voltage output for reliable testing.
- Field Ready: Compact construction for substations, construction sites, maintenance locations and laboratories.
- Customizable: Voltage, capacity, current, control unit and measurement configuration can be customized.
System Configuration
A complete AC/DC withstand test system can be configured according to the test requirements.
Typical configuration includes:
- Ultra-Light AC/DC Test Transformer
- Control Box / Control Unit
- High-Voltage Silicon Rectifier
- High-Voltage Divider
- Digital Microammeter
- High-Voltage Cables
- Discharge Rod
- Protective Gap
- Grounding Accessories
The configuration can be adjusted according to the test voltage, test current and test object.
How to Choose the Right Model
The appropriate configuration mainly depends on the required test voltage, test capacity and AC/DC test mode.
Available AC Output: 50kV / 100kV / 120kV
DC Output: Up to 140kV
Capacity: 1.5–30kVA
When selecting a model, please provide:
- Test Object
- Required AC Test Voltage
- Required DC Test Voltage
- Expected Test Current
- AC/DC Test Requirement
- Input Power Supply
Not sure which model you need? Send us your test requirements. Our engineers will recommend a suitable configuration.
Need an AC/DC Test Transformer?
Send us:
- Test Object
- Required AC/DC Test Voltage
- Capacity
- Expected Test Current
- Quantity
- OEM/ODM Requirements
Our engineers will recommend a suitable AC/DC Test Transformer configuration for your application.
WhatsApp: +86 180 7153 1810
Email: fionahuang60@gmail.com
Website: www.hkvtest.com
OEM/ODM Customization
HKVTEST supports OEM/ODM customization for the HZG1602 Series.
Customization can include:
- Rated Capacity
- AC/DC Output Voltage
- Output Current
- Input Voltage
- Control Box Configuration
- High-Voltage Measurement System
- AC/DC Test Functions
- Mechanical Structure
Customized configurations are available for specific laboratory, factory and field testing applications.
FAQ
What is an AC/DC Test Transformer used for?
It is used to generate high voltage for AC withstand, DC withstand and leakage current testing of electrical equipment and insulation systems.
What AC voltage options are available?
The HZG1602 Series provides AC output configurations from 50kV to 120kV, with different capacities available.
What is the maximum DC output voltage?
The system can provide up to 140kV DC output, depending on the selected configuration.
Is the transformer suitable for field testing?
Yes. The ultra-light dry-type design makes it easier to transport and suitable for substations, cable projects, maintenance sites and other field applications.
Can the test transformer be customized?
Yes. Capacity, AC/DC voltage, output current, control unit and measurement configuration can be customized according to the test requirements.
Warranty & Service
- Factory testing before delivery
- Technical documentation
- Remote technical support
- Spare parts and repair service
- OEM/ODM customization
About HKVTEST
HKVTEST is the global brand of Wuhan Hongzhi Gaocetest Electrical Technology Co., Ltd., a professional manufacturer of high-voltage electrical testing equipment with more than 16 years of industry experience.
We provide high-voltage test transformers, AC/DC withstand test equipment, cable testing equipment, transformer testing equipment and other electrical testing solutions for power utilities, substations, electrical contractors, laboratories and industrial customers.
