Product Introduction

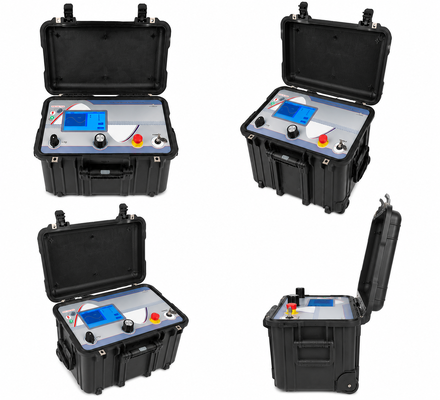

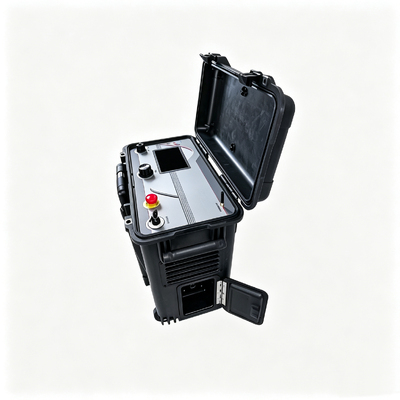

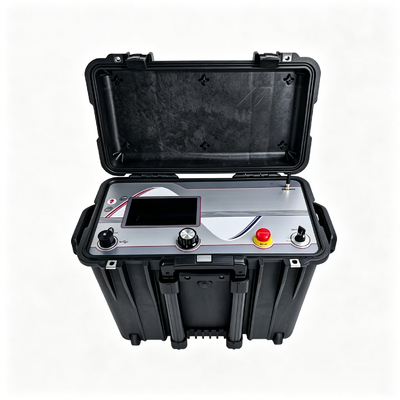

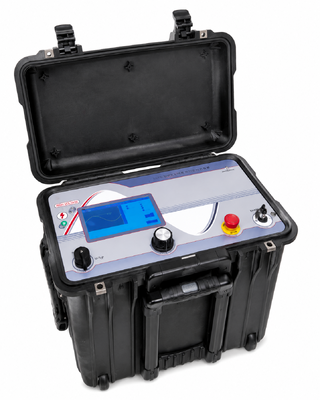

The VLF Cable Tan Delta Tester is a professional high-voltage diagnostic instrument designed for medium-voltage cable insulation testing. It integrates 0.1Hz very low frequency (VLF) AC withstand voltage testing and Tan Delta (dielectric loss) measurement in one system, allowing users to evaluate both cable insulation strength and insulation aging condition.
The system is suitable for XLPE, PE, and PILC cables, as well as underground power cables, helping detect insulation deterioration caused by aging, moisture ingress, and water tree degradation before cable failure occurs.
Technical Parameters
| Item |
VLF-34kV |
VLF-45kV |
| VLF Sine Output |
24kV RMS (34kV Peak) |
31.8kV RMS (45kV Peak) |
| DC Output Voltage |
±1–34kV |
±1–45kV |
| Output Current Range |
0–14mA |
0–14mA |
| Max Cable Capacitance @0.1Hz |
0.5μF @24kVrms |
0.5μF @31.8kVrms |
| Tan Delta Test Frequency |
0.1Hz |
0.1Hz |
| Tan Delta Load Capacitance |
1nF–8μF |
1nF–5μF |
| Tan Delta Accuracy |
1*10⁻⁴ |
1*10⁻⁴ |
| Voltage/Current Accuracy |
±1% |
±1% |
| Weight |
Approx. 22kg |
Approx. 22kg |
Application Scenarios
| Application |
Description |
| Cable AC Withstand Voltage Testing |
Verify insulation strength of medium-voltage power cables |
| Cable Tan Delta Measurement |
Evaluate insulation aging and dielectric loss condition |
| Cable Commissioning Testing |
Confirm cable quality before energization |
| Preventive Maintenance |
Detect potential insulation problems in aging cables |
| Underground Cable Diagnosis |
Assess insulation condition of buried power cables |
| XLPE / PE / PILC Cable Testing |
Suitable for different types of medium-voltage cables |
| Cable Sheath Testing |
Detect cable sheath insulation faults |
| Laboratory Testing |
Used for electrical testing and research applications |
Key Features
Integrated VLF Withstand Voltage & Tan Delta Testing
Combines VLF AC withstand voltage testing and dielectric loss (Tan Delta) measurement in one compact system, improving cable insulation testing efficiency.
Accurate Cable Insulation Diagnosis
Tan Delta measurement helps evaluate insulation aging, moisture ingress, water tree degradation, and general insulation deterioration.
Multiple Output Modes
Supports VLF sine wave output, VLF rectangular wave output, and DC high voltage output, meeting different cable testing requirements.
Intelligent Protection Function
Automatic protection against breakdown, overcurrent, and abnormal conditions improves operator safety during high-voltage testing.
Data Storage & Report Export
Stores test results internally and exports data through USB for testing records and report generation.
OEM/ODM Customization
Logo & Branding
Your company logo and branding can be applied to the unit and its interface.
Appearance & Case Color
Case color and exterior finish can be adjusted to match your brand or product line.
Functional Parameters
Output voltage, frequency options, and other functional settings can be configured to your specification.
Software UI & Language
Display interface language and layout can be customized for your target market.
MOQ & Lead Time
MOQ of 1 unit for logo/appearance customization. Lead time is standard production plus 1–2 weeks for customized units.
Get Your VLF Cable Tan Delta Tester Solution
Tell us your requirements and our engineers will recommend the right configuration.
- Test Object
- Required Specifications
- OEM/ODM Requirements
- Quantity
- Test Location
Request a Quote
Why Choose HKVTEST
HKVTEST is a National High-Tech Enterprise with over 16 years of experience manufacturing high-voltage electrical testing equipment, holding 10+ patents. Our products comply with relevant international testing standards and are backed by direct factory technical support and OEM/ODM customization. We've supplied testing equipment to customers across Rwanda, Tanzania, the Philippines, Vietnam, and India.
FAQ
What is a VLF Cable Tan Delta Tester?
A high-voltage cable diagnostic instrument that combines 0.1Hz VLF AC withstand voltage testing and Tan Delta dielectric loss measurement, used to verify cable insulation strength and evaluate insulation aging conditions.
What is the difference between VLF withstand testing and Tan Delta testing?
VLF withstand voltage testing checks whether cable insulation can withstand the required test voltage. Tan Delta testing measures dielectric loss characteristics to evaluate insulation quality and identify problems such as aging, moisture, and water tree degradation. Using both provides a more comprehensive assessment.
What types of cables can be tested?
XLPE insulated cables, PE insulated cables, PILC cables, medium-voltage underground cables, and distribution power cables.
Does it support cable sheath testing?
Yes. The system supports cable sheath testing and sheath fault diagnosis with output voltage up to 10kV.
