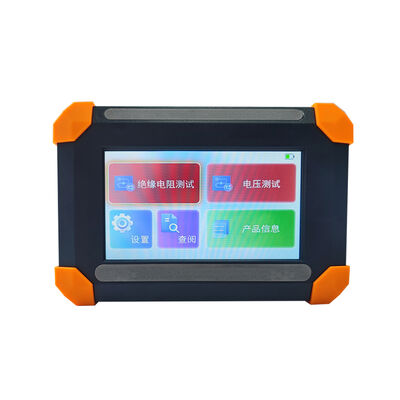

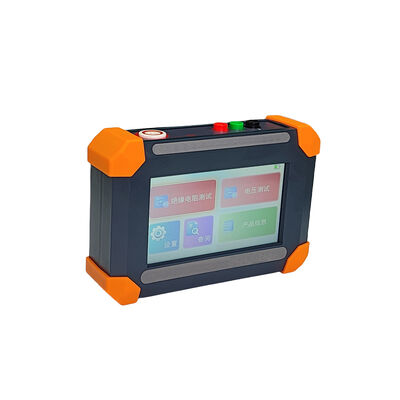

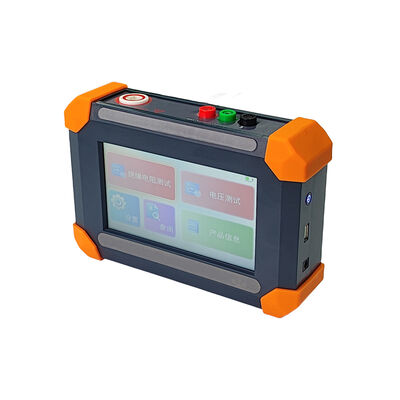

LCD Display Insulation Resistance Tester 0-2000GΩ High Accuracy Megohmmeter for Power Lines/Transformers

Product Description

1. Introduction

Digital Insulation Resistance Tester Also known as Zhaoou Meter, High Voltage Insulation Resistance Tester Wait—for testing the insulation resistance. This instrument features an LCD touchscreen display, data storage, data retrieval, alarm functions, automatic shutdown, and more. It also provides functions for measuring DC voltage, AC voltage absorption ratio, and polarization index. Aesthetically pleasing and high-end overall design, wide measurement range, high resolution, easy operation, portable, accurate, reliable, stable performance, strong interference resistance. It also features anti-vibration, dustproof, and moistureproof construction; it’s an indispensable instrument widely used in telecommunications, power generation/transmission, meteorology, data centers, oil fields, electrical installation and maintenance, and industrial enterprises that utilize electricity as industrial power or energy. It is suitable for measuring the resistance values of various insulating materials and the insulation resistance of transformers, motors, cables, electrical equipment, etc.

A digital insulation resistance tester is composed of a medium-scale integrated circuit. This table shows high output power and multiple output voltage levels (six levels). Rated insulation test voltage range: 100 V–5000 V; insulation resistance measurement range: 0.50 MΩ–2000 GΩ. DC voltage measurement range: 0–1000 V; AC voltage measurement range: 0–750 V.

Measuring Function	Output Voltage	Measuring Range	Accuracy	Resolution
Insulation Resistance	100V(±10%)	0.50 MΩ～5.00MΩ	±3%rdg±5dgt	0.01MΩ
		5.00 MΩ～50.00MΩ	±3%rdg±5dgt	0.01MΩ
		5.0MΩ～50.0MΩ	±3%rdg±5dgt	0.1MΩ
		50MΩ～500MΩ	±3%rdg±5dgt	1MΩ
		0.50GΩ～5.00GΩ	±5%rdg±5dgt	0.01GΩ
		5.0GΩ～20.0GΩ	±10%rdg±5dgt	0.1GΩ
	250V(±10%)	0.10 MΩ～1.00MΩ	±3%rdg±5dgt	0.01MΩ
		1.00 MΩ～10.00MΩ	±3%rdg±5dgt	0.01MΩ
		10.0MΩ～100.0MΩ	±3%rdg±5dgt	0.1MΩ
		100MΩ～1000MΩ	±3%rdg±5dgt	1MΩ
		1.00GΩ～10.00GΩ	±5%rdg±5dgt	0.01GΩ
		10.0GΩ～30.0GΩ	±10%rdg±5dgt	0.1GΩ
	500V(±10%)	0.20 MΩ～2.00MΩ	±3%rdg±5dgt	0.01MΩ
		2.00 MΩ～20.00MΩ	±3%rdg±5dgt	0.01MΩ
		20.0MΩ～200.0MΩ	±3%rdg±5dgt	0.1MΩ
		200MΩ～2000MΩ	±3%rdg±5dgt	1MΩ
		2.00GΩ～20.00GΩ	±5%rdg±5dgt	0.01GΩ
		20.0GΩ～50.0GΩ	±10%rdg±5dgt	0.1GΩ
	1000V(±10%)	0.50MΩ～5.00MΩ	±3%rdg±5dgt	0.01MΩ
		5.00MΩ～50.00MΩ	±3%rdg±5dgt	0.01MΩ
		50.0MΩ～500.0MΩ	±3%rdg±5dgt	0.1MΩ
		500MΩ～5000MΩ	±3%rdg±5dgt	1MΩ
		5.00GΩ～50.00GΩ	±5%rdg±5dgt	0.01GΩ
		50.0GΩ～100.0GΩ	±10%rdg±5dgt	0.1GΩ
2500V(±10%)	0 MΩ～10MΩ	±3%rdg±5dgt	0.01MΩ
	10 MΩ～100MΩ	±3%rdg±5dgt	0.1MΩ
	100 MΩ～1000MΩ	±3%rdg±5dgt	1MΩ
	1 GΩ～10GΩ	±5%rdg±5dgt	0.01GΩ
	10 GΩ～100GΩ	±10%rdg±5dgt	0.1GΩ
	100 GΩ～300GΩ	±20%rdg±5dgt	1GΩ
5000V(±10%)	0 MΩ～20MΩ	±3%rdg±5dgt	0.01MΩ
	20 MΩ～200MΩ	±3%rdg±5dgt	0.1MΩ
	200 MΩ～2000MΩ	±3%rdg±5dgt	1MΩ
	2 GΩ～20GΩ	±5%rdg±5dgt	0.01GΩ
	20 GΩ～200GΩ	±10%rdg±5dgt	0.1GΩ
	200 GΩ～2000GΩ	±20%rdg±5dgt	1GΩ

Specification Items	Details
Function	Insulation Resistance Test, Voltage Test
Reference Conditions	23℃±5℃, Below 75%RH
Rated Voltage	100V, 250V, 500V, 1000V, 2500V, 5000V
Insulation Resistance Range	0.50MΩ～2000GΩ, Resolution: 0.01MΩ
Measuring Voltage (V)	Rated Voltage * (1±10%)
DC Voltage Range	0～1000V, Resolution: 0.1V
AC Voltage Range	0～750V, Resolution: 0.1V
Output Short-Circuit Current	≥5mA (5000V)
Absorption Ratio & Polarization Index Measurement	Available
Power Supply	11.1V Rechargeable Lithium Battery
Backlight	Adjustable Backlight, Suitable for Dim Environments
LCD Display Size	153.84mm * 85.63mm
Meter Dimensions (LWH)	296.6mm * 174.5mm * 74mm
USB Interface	With USB Interface, Software Monitoring, Stored Data Can Be Uploaded to Computer and Saved
Communication Cable	1 USB Communication Cable
Data Storage	500 Groups
Data Review	Data Review Function Available
Overrange Display	Available
Alarm Function	Alarm Prompt When Measured Value Exceeds the Alarm Setting Value
Power Consumption	Standby: 275mA Max; Measuring: 423mA Max
Meter Weight	2750g (Including Battery)
Battery Voltage	Low Battery Symbol Display When Battery Voltage Is Insufficient
Auto Power Off	Auto Power Off After 15 Minutes of No Operation
Insulation Resistance (Between Measuring Circuit and Housing)	≥50MΩ
Withstand Voltage	AC3kV/50Hz for 1min
Operating Temperature and Humidity	－10℃～+50℃, ＜85%RH
Storage Temperature and Humidity	－15℃～+55℃, ＜90%RH
Applicable Safety Standards	IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529 (IP54), Pollution Degree 2, CAT Ⅲ 300V
